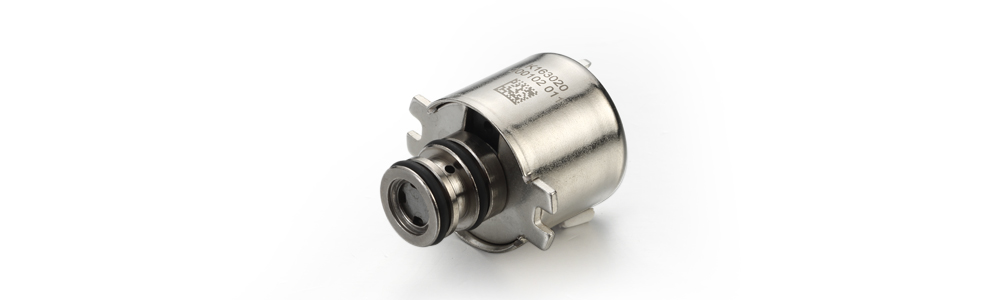

3/2 Way High Speed Switch Solenoid
Installation mode
Plug-in, plate type
Working pressure
0.98Mpa
Installation and sealing mode
O-ring sealing
Working frequency
50Hz
Connector mode
Custom connector
Adjustment range
8%～60%
Sealing structure
Spring preloading plate structure
Rated flow
≥2L/min(0.5Mpa pressure drop)
Resistance
10±0.5Ω(20℃)
Response time
≤8ms
Rated current
≤1.2A
Leakage
≤80mL/min(0.98Mpa，50℃)
Working mode
PWM
Safety pressure
1.4Mpa
Working frequency
50Hz
50Hz
≤3%
Working medium
Hydraulic oil
Consistency error
≤5%
Working temperature
－40℃～+140℃
Life cycle
≥100 million times
Working voltage
8～16V
Weight
≤120g
Overall dimension
Φ25mmX42mm
