Hydraulic Solenoid Series
Down

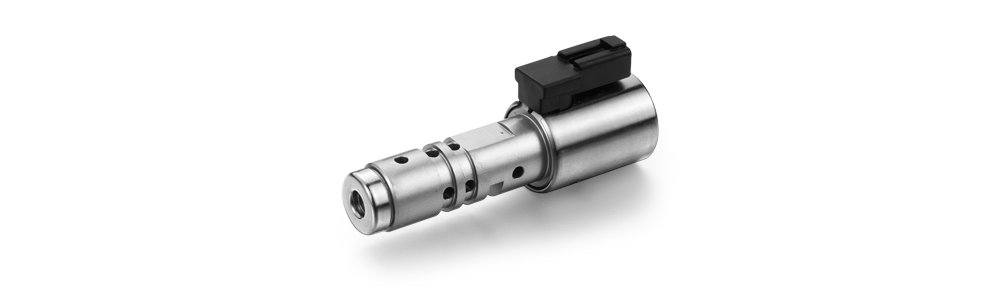

5AT Hydraulic NH Solenoid
Installation mode
Plug-in, bolt type
Leakage
≤0.3L/min（oil supply 0.9MPa，90℃）
Seal with valve plate
Clearance fit seal
Response time
≤30ms
Connector mode
Custom connector
Pressure stabilization time
≤50ms
Sealing structure
Slide valve
Hysteresis loop
≤5%
Working mode
Normally open
Pressure fluctuation
≤0.05MPa
Working medium
Hydraulic oil
Repeatability error
≤5%
Working temperature
－40℃～+140℃
Consistency error
≤5%
Working voltage
9～18VDC
Life cycle
≥ 10 million times
Working frequency
100-600Hz
Weight
85g
Resistance
5.5Ω±0.3Ω
Working pressure
0.6MPa
Rated current
≤1.3A
Rated flow rate
4L/min (0.5Mpa differential pressure)
Overall dimension
φ22.5X76.5mm
