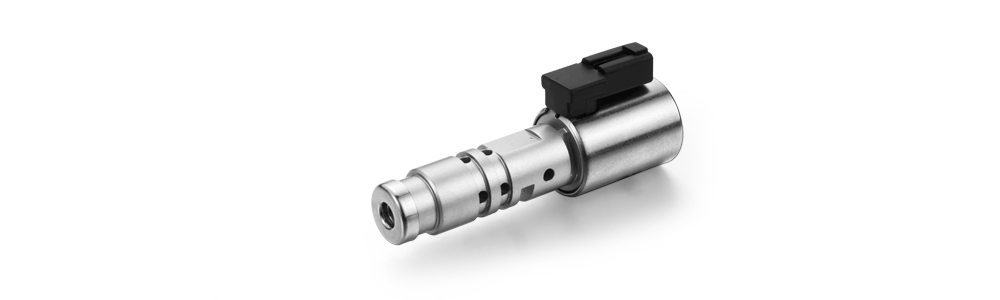

CVT Hydraulic NH Solenoid
Installation mode
Plug-in, bolt type
Leakage
≤350mL/min(2MPa ，90℃)
Seal with valve plate
Clearance fit seal
Response time
≤100ms
Connector mode
Custom connector
Pressure stabilization time
≤200ms
Sealing structure
Slide valve
Hysteresis loop
≤3%
Working mode
Normally open
Pressure fluctuation
≤0.03MPa
Working medium
Hydraulic oil
Repeatability error
≤3%
Working temperature
－40℃～+140℃
Consistency error
≤3%
Working voltage
9～15V
Life cycle
≥ 50 million times
Working frequency
100-600Hz
Weight
85g
Resistance
5.5Ω±0.3Ω
Working pressure
2MPa
Rated current
≤1A
Rated flow rate
5L/min (0.3Mpa differential pressure)
Overall dimension
φ22.5X79mm
