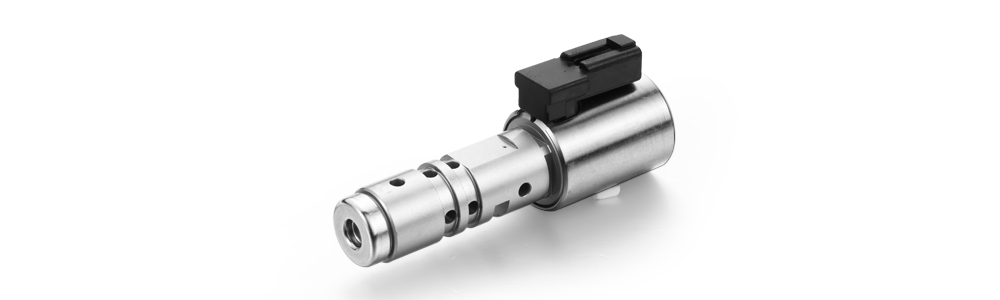

NL Solenoid of Variable Displacement Oil Pump
Installation mode
Plug-in, bolt type
Leakage
≤120ml/min(oil supply 1MPa，90℃）
Seal with valve plate
Clearance fit seal
Response time
≤150ms
Connector mode
Custom connector
Pressure stabilization time
≤200ms
Sealing structure
Slide valve
Hysteresis loop
≤3%
Working mode
Normally closed
Pressure fluctuation
≤0.05MPa
Working medium
Hydraulic oil
Repeatability error
≤5%
Working temperature
－40℃～+140℃
Consistency error
≤5%
Working voltage
21～27VDC
Life cycle
≥ 50 million times
Working frequency
100-600Hz
Weight
80g
Resistance
12Ω±0.5Ω
Working pressure
0.5MPa
Rated current
≤0.7A
Rated flow rate
4L/min (0.2Mpa differential pressure)
Overall dimension
φ22.5X76mm
